NVIDIA2023
GeForce RTX 4060 Ti
GeForce 40
Ada LovelaceAD1065 nm
Memory16 GB GDDR6
Boost clock2,535 MHz
Board power165W
As an Amazon Associate we earn from qualifying purchases
Release context

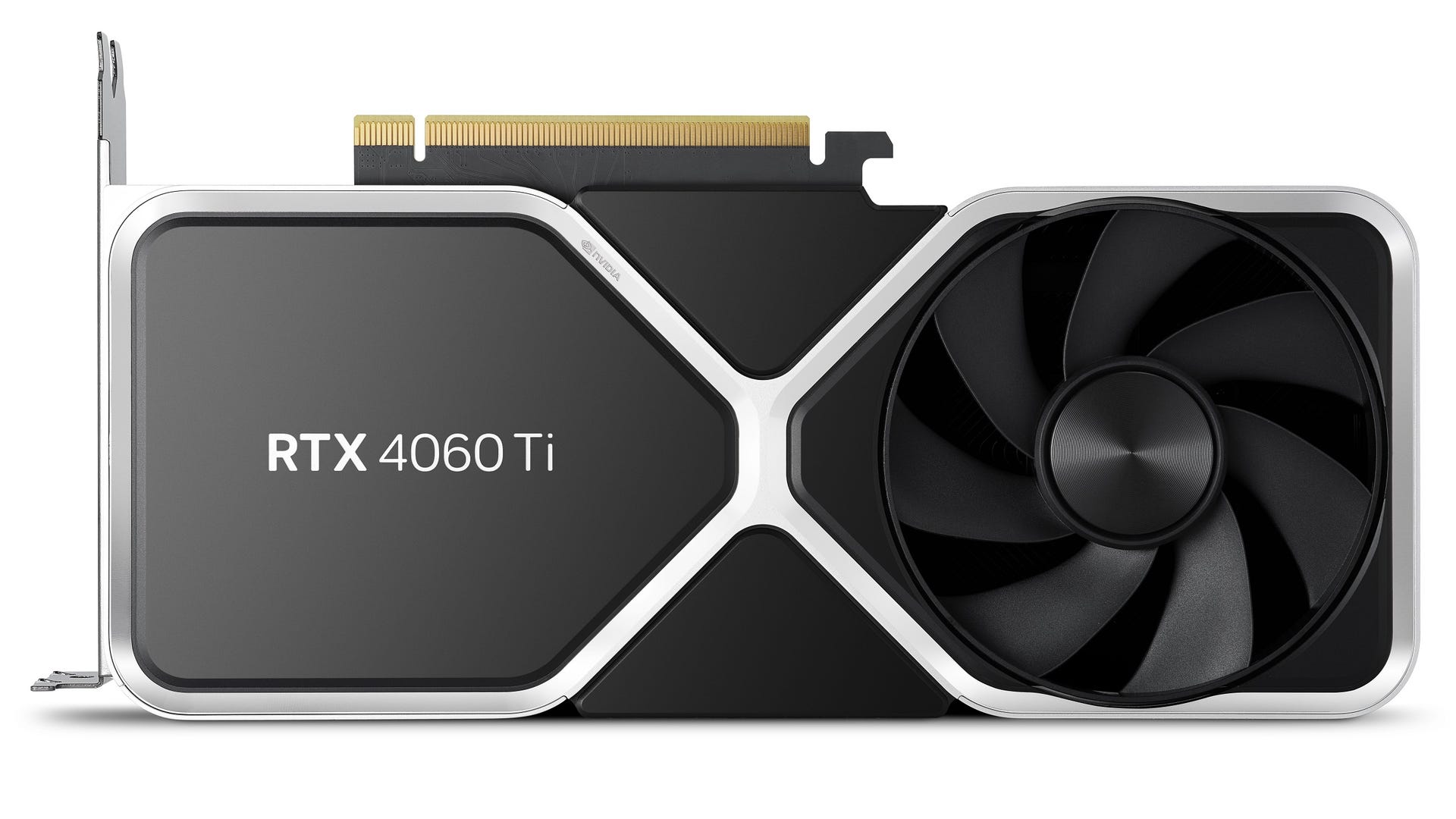

GeForce RTX 4060 Ti at a glance
GeForce RTX 4060 Ti is a 2023 graphics processor from the GeForce 40 family. Its catalog specifications include the Ada Lovelace architecture, 16 GB of GDDR6, a boost clock up to 2,535 MHz, a 165W board power rating.
Compare with Another GPU
Select a graphics card to see a side-by-side comparison with the GeForce RTX 4060 Ti.
Boost Clock
2,535 MHz
VRAM
16 GB
TDP
165W
Memory Bandwidth
288 GB/s
Shading Units
4352
Memory Bus
128 bit
Performance Specs
Base Clock
2,310 MHzBoost Clock
2,535 MHzShading Units / Stream Processors
4352Texture Units
136Render Output Units
48Memory Specs
VRAM Size
16 GBMemory Type
GDDR6Memory Bus Width
128 bitMemory Clock
2,250 MHzMemory Bandwidth
288 GB/sArchitecture & Manufacturing
Architecture
Ada LovelaceCode Name
AD106Process Node
5 nmDie Size
188 mm²Transistors
22,900MInterface & Power
Bus Interface
PCIe 4.0 x8TDP (Thermal Design Power)
165WDisplay & Dimensions
Pricing & Info
Launch Date
May 18, 2023Generation
GeForce 40API Support
DirectX
DirectX 12OpenGL
OpenGL 4.6Vulkan
Vulkan 1.4CUDA
CUDA 8.9OpenCL
